Jasper Slip
Description: Albany Slip Substitute
| Oxide | Analysis | Formula | Tolerance |
|---|---|---|---|
| CaO | 7.10% | 0.54 | |
| K2O | 2.70% | 0.12 | |
| MgO | 2.90% | 0.31 | |
| Na2O | 0.40% | 0.03 | |
| TiO2 | 0.80% | 0.04 | |
| Al2O3 | 14.10% | 0.59 | |
| SiO2 | 55.10% | 3.92 | |
| Fe2O3 | 5.60% | 0.15 | |
| LOI | 11.30% | n/a | |
| Oxide Weight | 379.65 | ||
| Formula Weight | 428.02 | ||
Notes
United Clays recommends this as a substitute for Albany Slip. It is very plastic, much more so than Albany Slip (drying shrinkage is over 9%).
Particle size distribution (% undersize)
20um 94
10um 89
5um 79
2um 61
1um 49
0.5um 37
pH: 8.0
Fired color cone 4: Chocolate semi-gloss
Cone 6: Dark brown gloss
Cone 10: Brown translucent
Thermal Expansion: See United Clay data sheet for chart.
Related Information

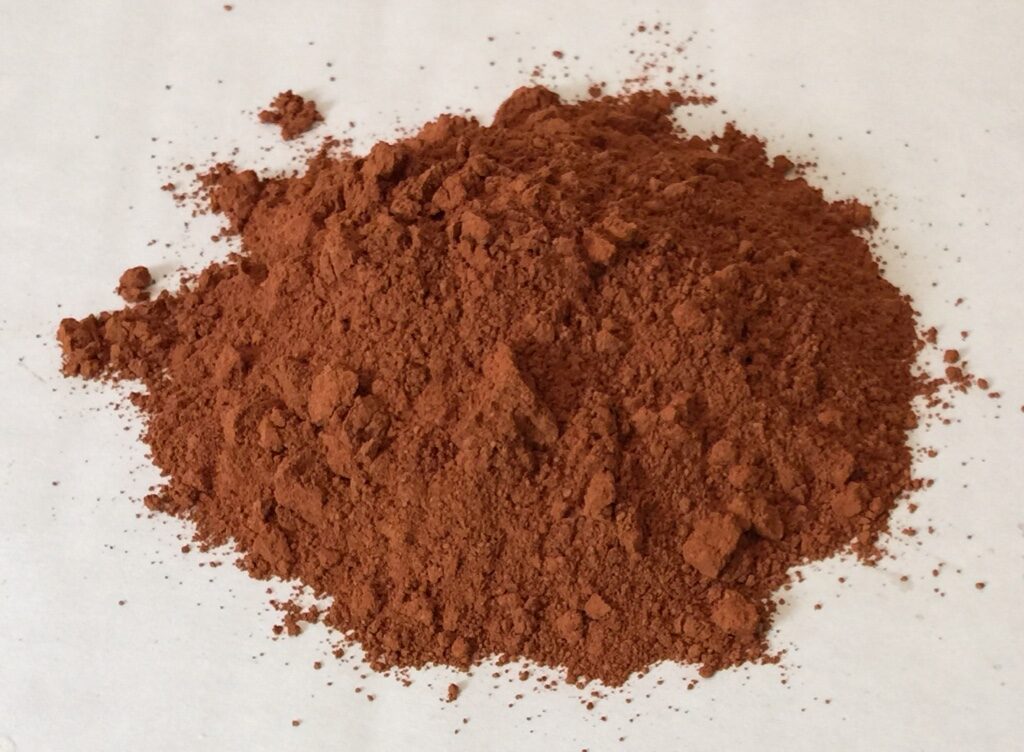

Jasper slip powder
This picture has its own page with more detail, click here to see it.

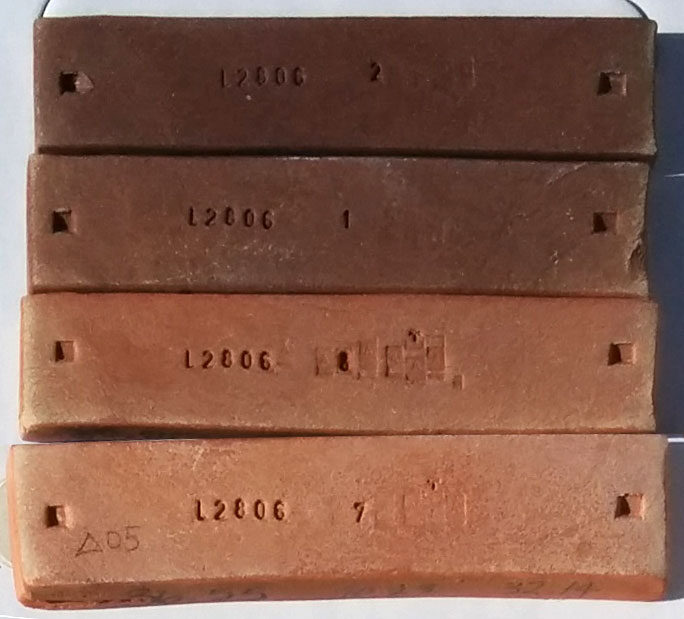

Jasper Slip fired bars
This picture has its own page with more detail, click here to see it.
Fired at cone 2, 1, 02, 05 (top to bottom). Reaches zero porosity between cone 1 and 2.
